Removing pulley (vibration damper)

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

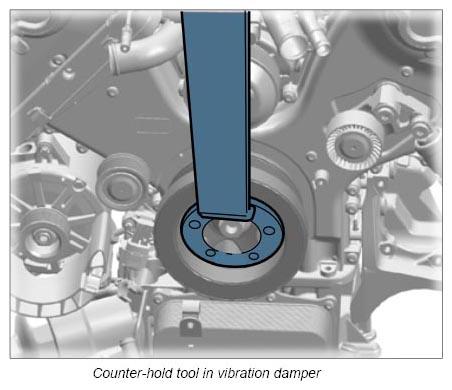

Counter-hold tool 9679/3 with the rectangular tube from holding wrench 9732 must be inserted into the vibration damper and turned until it locks. → Counter-hold tool in vibration damper

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
NOTE:
Incorrect handling of tools
- Risk of damage to the body
→ Only use tools approved by Porsche.

→ Always ensure that the tool is seated correctly.

→ Protect the body and interior of the vehicle from damage with protective covers.

→ Cover delicate components with cardboard or sheet metal panels.

Information

Protect the radiator fins using cardboard or a sheet metal panel to prevent damage. Cover wing and peripheral parts to protect them.

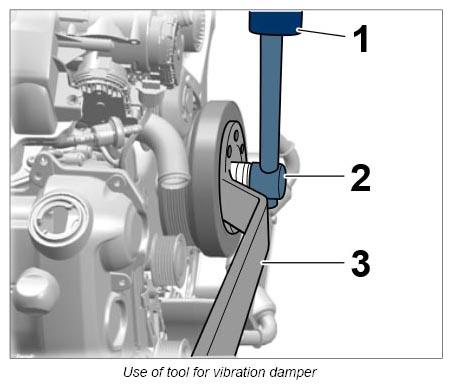

Fit the large torque wrench or T-piece -2- . Use a tubular handle if necessary -1- .

2.1. Undo the central screw of the damper. Do not use the screw again.
2.2. Use a tubular handle -1- if necessary.

2.3. Important: Loosening torque is very high.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

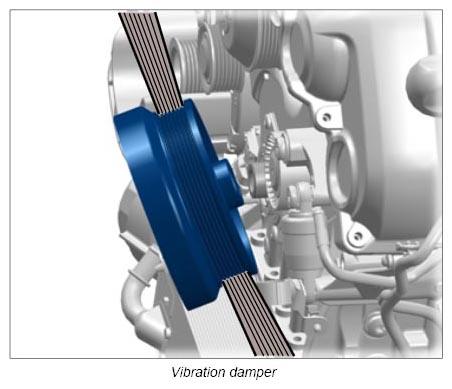

Remove central screw and pull vibration damper down and forward. → Vibration damper

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
