Removing crankshaft sealing ring for pulley/vibration balancer

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

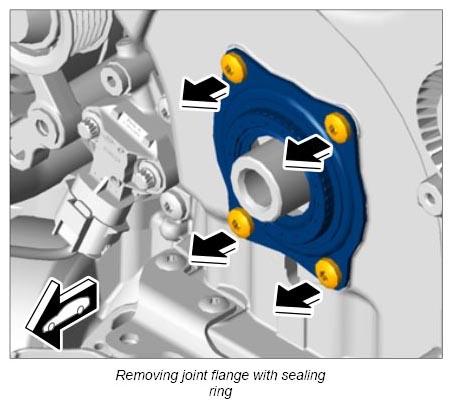

  1. Loosen the four fastening screws and remove joint flange with sealing ring.
    1. 1.1. Replace joint flange and sealing ring.
      G12833342Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Clean contact surfaces.
