Removing belt tensioner

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

Information

The lock carrier must be moved to service position for better access in the engine compartment at the front. → 503809 LOOSENING AND SECURING LOCK CARRIER (SERVICE POSITION) .

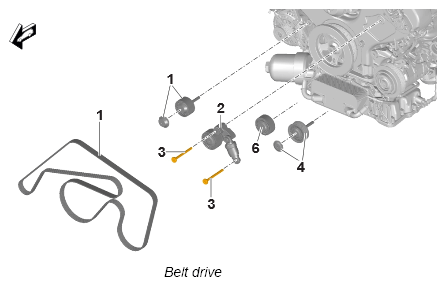

Unscrew screws -3- and remove belt tensioner.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

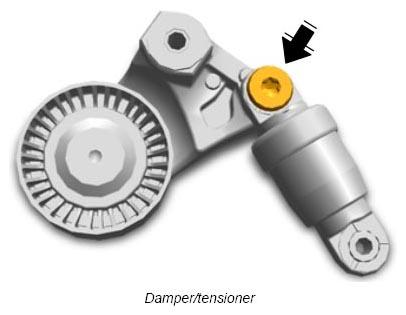

The connecting screw does not have to be loosened in order to remove the belt tensioner.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
