Removing flywheel
WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
Information
- The flywheel must not be tilted during removal and installation.

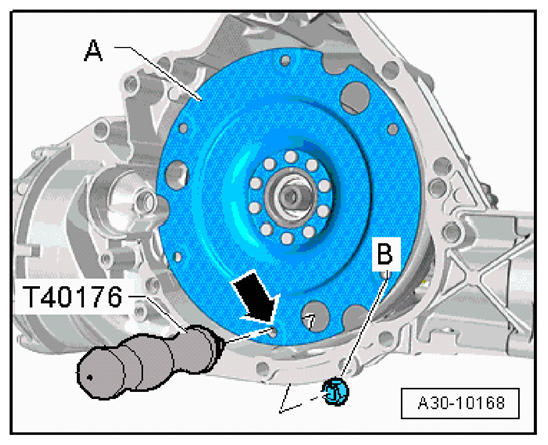

- Secure the extractor Extractor T40176
on the flywheel -A-
with a nut -B-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
- Remove flywheel.
- 2.1. Turn extractor Extractor T40176
upwards.
- 2.2. Pull flywheel off the input shaft without tilting it.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
