Removing pistons

Information

• Connecting rod bolts and bearing shells must always be replaced.
• Turn the crankshaft so that the crank pin of the pistons to be removed is positioned outwards.

Information

• Note the association between the connecting-rod big end and the connecting-rod bearing cap as the cracked connecting rods only fit in one position.
• The retaining lugs of the connecting-rod bearing shells are always located on the same side in order to prevent the bearing shells from turning.
• The connecting-rod bearing cap and the big end of the connecting-rod bearing have the same connecting-rod numbers.

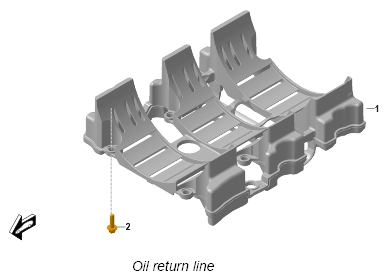

1. Remove oil return (oil plate) -1-  under the oil pump.
   1. 1.1. Unscrew screws -2-  and remove oil plate.

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

2. Remove piston and connecting rod.
   1. 2.1. Loosen connecting rod bolts -6-  and take off connecting rod caps -5-  .
   2. 2.2. Push piston out of the crankcase using a wooden handle and get another person or use your other hand to take hold of the piston.
   3. 2.3. Fit connecting rod cap hand-tight to the connecting rod again using the old screws and set down after marking according to the relevant cylinder.
   4. 2.4. The combustion chamber recess on the piston is facing the injector.
   5. 2.5. The connecting rods are cracked and the connecting rod code is facing the exhaust side.
      Fig 1: Exploded View Of Pistons And Connecting Rods

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. Remove the remaining pistons using the same procedure. To do this, turn the crankshaft using a wrench (a/f 27).
