Replacing sealing ring for transfer gear
WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

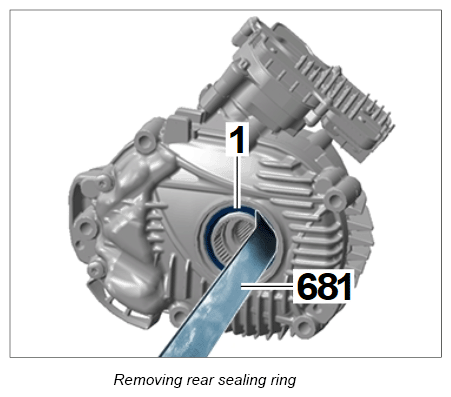

- Remove sealing ring -1-
using hook VW 681
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
- Clean the sealing face.
- Install new sealing ring using pressure piece 9881/1
.
- 3.1. Tap in sealing ring evenly using a plastic hammer.
