Draining oil for transfer gear

→ Let the fluid cool down.

→ Wear personal protective gear.

Information

To ensure that the transfer gear is filled correctly, a total of 500 ml  . of oil must be drained and extracted.

Information

Use only oil approved by Porsche.

1. Drain oil for transfer gear.

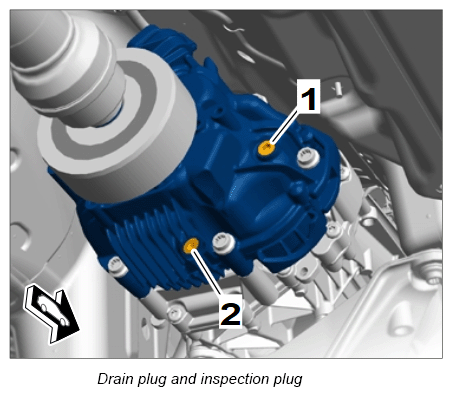

   1. 1.1. Unscrew inspection plug and filler plug -1-  .
   2. 1.2. Unscrew oil drain plug -2-  and collect emerging oil in a measuring cup.
   3. 1.3. Replace oil drain plug -2-  and tighten to the specified torque.

      Tightening torque 20 Nm (15 ft. lb.) +/-4 Nm (+/-3 ft. lb.)

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

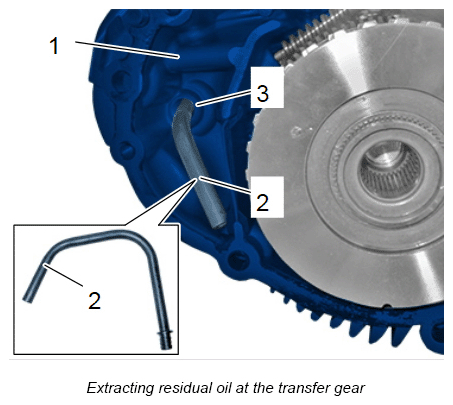

2. Extract oil at the transfer gear -1-  .
   1. 2.1. Use transmission fluid filler pump set WE 1372  and adapter pipe WE 1869 -2-  to extract residual oil through the inspection and filler plug opening -3-  .

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
