Checking oil for final drive
WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Hot fluid
- Danger of scalding
→ Let the fluid cool down.
→ Wear personal protective gear.
Information
- Secure vehicle to prevent it rolling away.
- To check transmission oil the vehicle must be horizontal.
- Check oil for final drive.

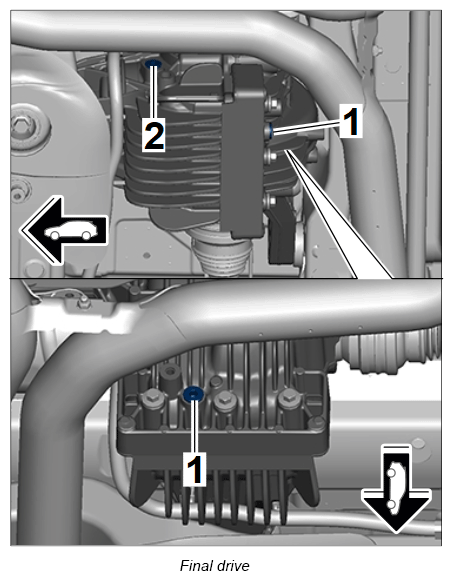

- 1.1. Unscrew inspection plug and filler plug -2- .
- 1.2. Oil for final drive must come up to the lower edge of the inspection and filler bore.
- 1.3. Top up oil for final drive. → 399055 CHANGING OIL FOR FINAL DRIVE
- 1.4. Tighten inspection plug and filler plug to the specified torque -2-
.
