Filling oil for all-wheel final drive (transmission oil)
WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
Information
- Secure vehicle to prevent it rolling away.
- To check transmission oil the vehicle must be horizontal.
Information
- To ensure that the various oil chambers in the transmission are filled uniformly, always observe the specified filling time.
- Fill in oil for all-wheel final drive slowly and uniformly over a period of at least 5 minutes.

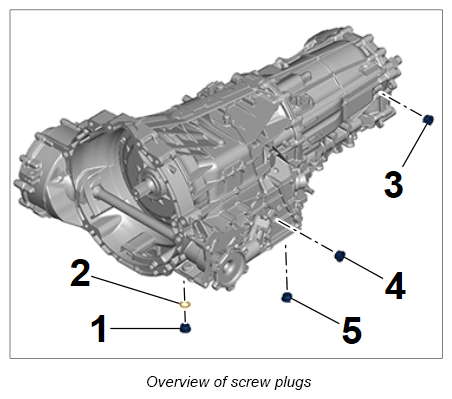

- 1.1. Unscrew inspection plug and filler plug -3- .
- 1.2. Repeat the filling process step-by-step every 15 seconds using 50 ml of oil.
- 1.3. Oil for all-wheel final drive must come up to the lower edge of the inspection and filler bore.
- 1.4. Tighten inspection plug and filler plug -3-
to the specified torque Tightening torque 60 Nm (44 ft. lb.)
.
