Removing servo motor for rear-differential lock
WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

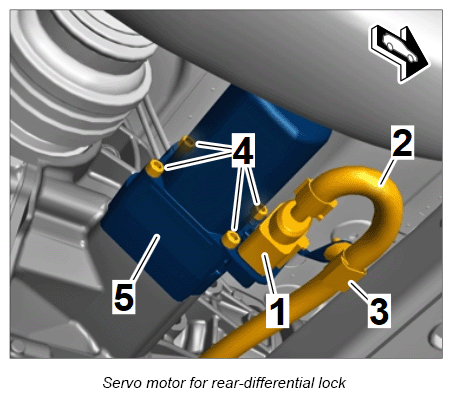

- Remove servo motor for rear-differential lock.
- 1.1. Release and disconnect electric connector -1-
.
- 1.2. Loosen electric line -2-
from the holder -3-
.
- 1.3. Unscrew screws -4-
and remove servo motor -5-
.
→ Let the fluid cool down.
→ Wear personal protective gear.
- 1.4. Collect emerging oil in a container.
