Removing transfer gear

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

Information

Remove transfer gear with vibration damper.

The vibration damper cannot be removed from the transfer gear without damaging it .
The vibration damper must always be replaced following removal .
Read and follow installation instructions for vibration damper .

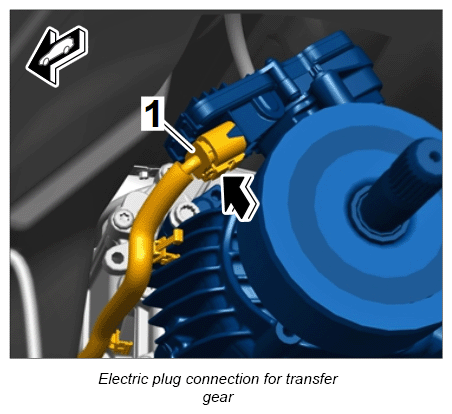

Release electric connector -1- and disconnect it.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove transfer gear.
1. 2.1. Loosen screws in the sequence -5-1- .
2. 2.2. Support transfer gear with a transmission jack.
3. 2.3. Unscrew screws.
4. 2.4. Pull off transfer gear and remove it in a downward direction.

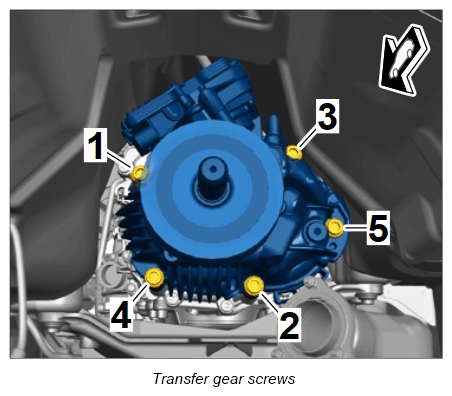

  Fig 1: Transfer Gear Screws Loosening Sequence
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
