Replacing sealing ring for front right halfshaft flange
WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

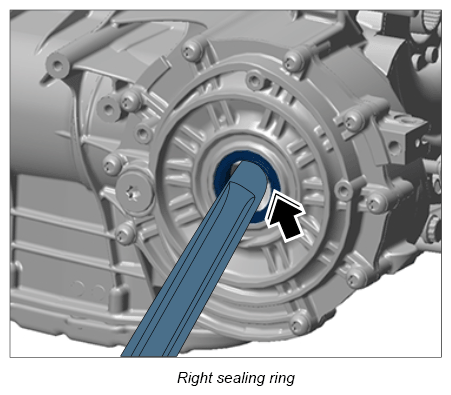

- Lever off sealing ring using a mounting lever.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
- Install new sealing ring.

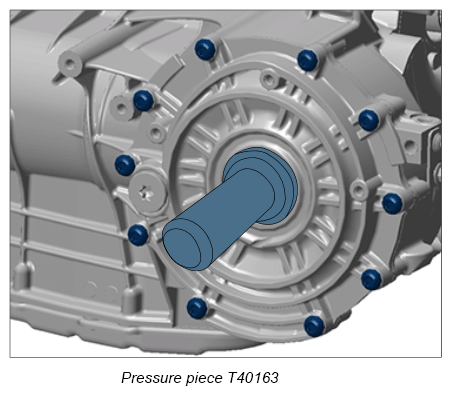

- 2.1. Oil the external circumference of the new sealing ring with a light coating of oil and fit it on the pressure piece T40163
.
- 2.2. Tap sealing ring in as far as it will go using pressure piece. Do not tilt it.
- 2.3. Half-fill the space between the sealing and dust lips with sealing grease.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
