Removing right halfshaft flange

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

Information

Replace the circlip for the right halfshaft flange.

Place the collection container under the right halfshaft flange.

Pull off the halfshaft flange.

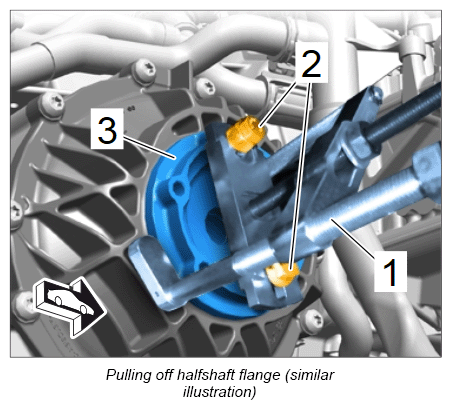

2.1. Screw in the fastening screws -2- on the halfshaft flange -3- .

2.2. Pull off the halfshaft flange -3- using a puller T10037 .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

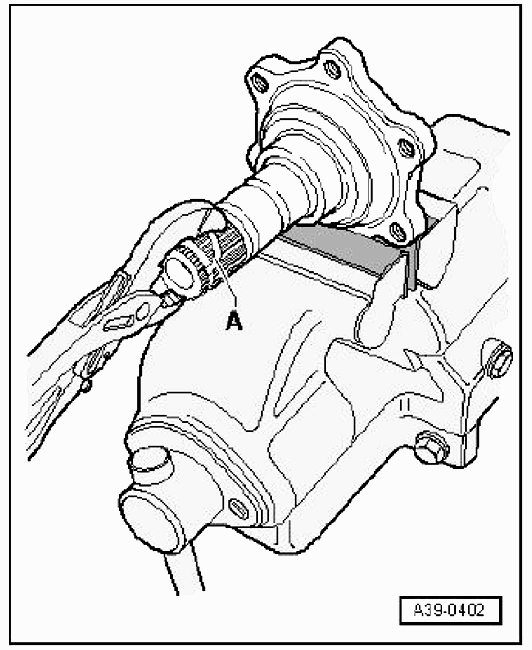

Replace the circlip -A- .

3.1. Clamp the halfshaft flange in a vice using protective jaws.

3.2. Replace the circlip -A- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
