Removing sealing ring for halfshaft flange (rear final drive)
WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
Information
The procedure for removing and installing is described for one side as an example. The procedure for the other side is practically identical.

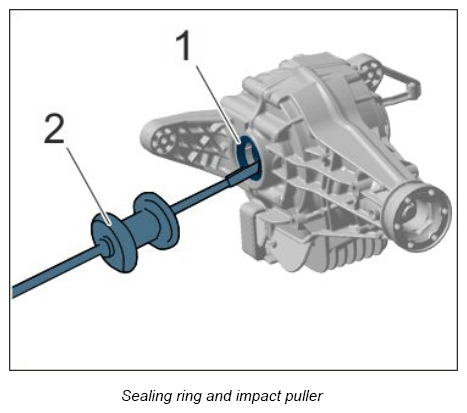

- Pull out sealing ring on halfshaft flange -1-
using impact puller Nr.168-1 -2-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
