Installing sealing ring for halfshaft flange (rear final drive)

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

Information

The procedure for removing and installing is described for one side as an example. The procedure for the other side is practically identical.

Install new sealing ring for halfshaft flange.

1.1. Clean the sealing surface of the sealing ring.
1.2. Oil the outer edges of the halfshaft-flange sealing ring slightly.

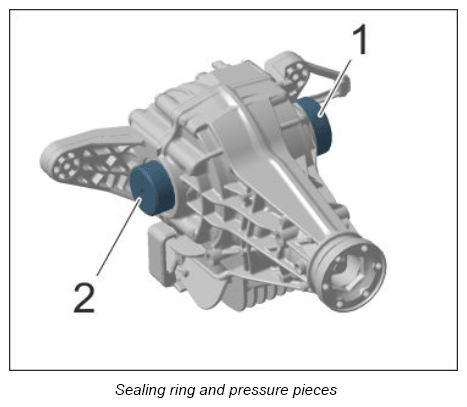

1.3. Drive in halfshaft-flange sealing ring as far as it will go using the relevant pressure piece

1.3.1. Pressure piece 9880 -1- must be used for the right side.

1.3.2. Pressure piece 9880/1 -2- must be used for the left side.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
