Rmoving rear final drive

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Danger of objects or loads falling down

Risk of squashing or crushing

→ Secure components to prevent them from falling down.

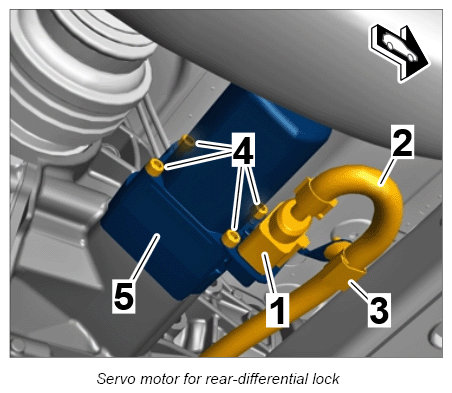

Release and disconnect electric connector for servo motor for rear-differential lock -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Support rear final drive using Transmission and Engine Jack WE 1599, for example.

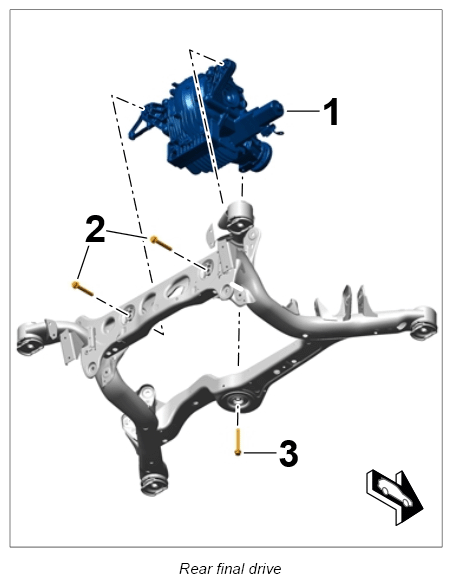

Remove rear final drive -1- .

3.1. Unscrew screws -2- on rear axle carrier.
3.2. Unscrew screw -3- on final drive bearing.

3.3. Remove rear final drive by tilting it downwards.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
