Installing control mechanism for transmission

Information

After installing the control mechanism for transmission, code and calibrate it using the PIWIS Tester  .

1. Check shift forks.
   1. 1.1. Check all gear actuators by directing a torch through the opening between the control mechanism for transmission and transmission housing.

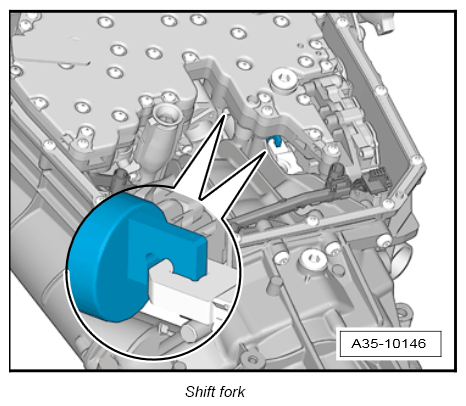

   2. 1.2. All four drivers for the gear actuators must engage in the related eyelets on the shift forks → Shift fork  .

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

2. Check that the ATF oil pipes -1... 5-  are fitted securely.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

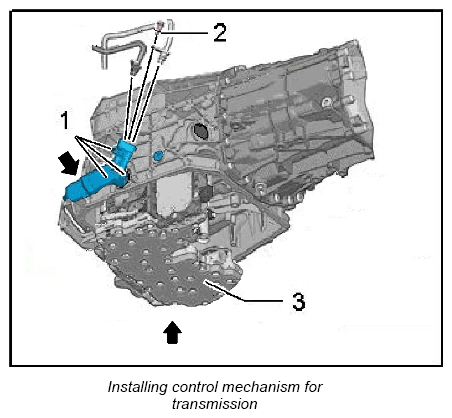

3. Install control mechanism for transmission -3-  .
   1. 3.1. Pull ATF filter housing out slightly.
   2. 3.2. Guide control mechanism for transmission -3-  in -direction of arrow-  until it is fitted in the transmission.
   3. 3.3. Check that the control mechanism for transmission is fitted correctly.
   4. 3.4. Fit ATF filter housing on the control mechanism for transmission and check that the oil pipes are fitted correctly.
   5. 3.5. Fit and tighten fastening screws -1-  . Tightening torque 10 Nm (7.5 ft. lb.)

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

4. Fit and tighten fastening screws -1... 6-  .

   Initial tightening 8 Nm (6 ft. lb.)

   Final tightening +90  °

   Fig 1: Transmission Control Mechanism Screws Tightening Sequence

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

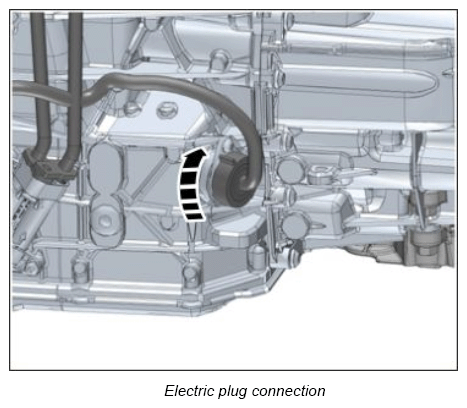

5. Connect electric plug connection and engage the lock -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

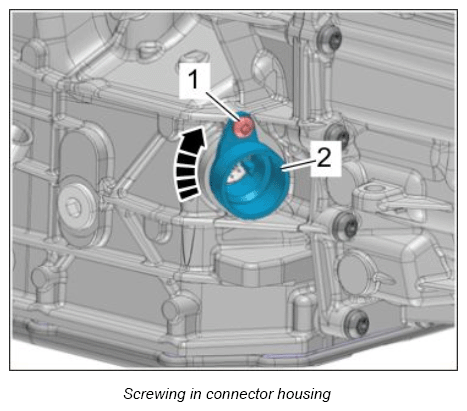

6. Guide in connector housing -2-  and turn it in -direction of arrow-  until you reach the bore for the fastening screw. Then fit and tighten fastening screw -1-  .

   Tightening torque 8 Nm (6 ft. lb.)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

7. Connect electric plug connection on connector housing and lock it by turning the lock in -direction of arrow-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

8. Replace seal -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

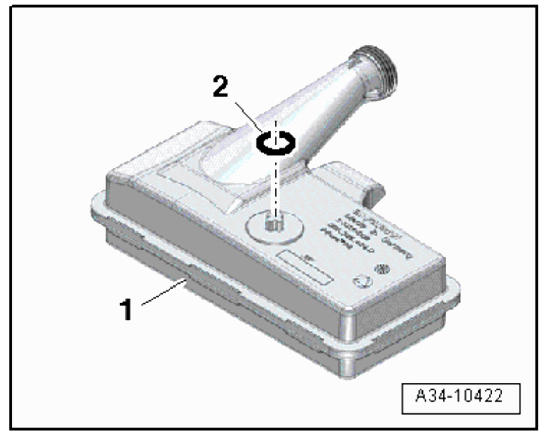

9. Guide ATF suction filter into the control mechanism for transmission in -direction of arrow-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
