Installing sealing ring for rear output shaft
WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

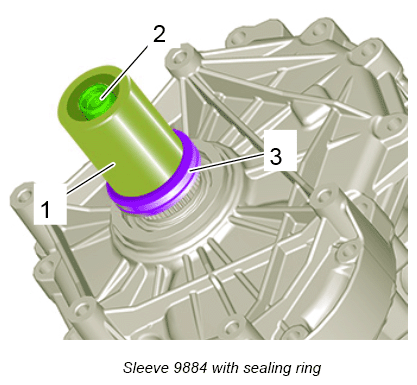

- Sleeve 9884 -1-
must be fitted on the output shaft -2-
. Then push sealing ring -3-
onto the sleeve -1-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
- Fit sealing ring.
- 2.1. Pressure piece 9884/1
must be pushed onto the sleeve 9884
and output shaft.

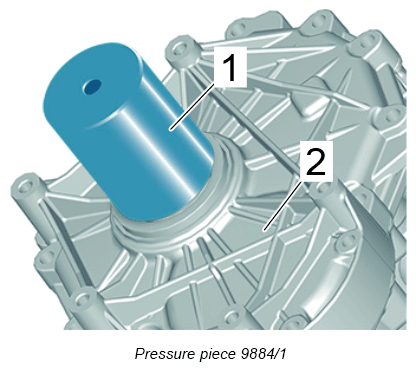

- 2.2. Using pressure piece 9884/1 -1-
, press sealing ring as far as the stop on the pressure piece -1-
into the lid -2-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
- Remove pressure piece and sleeve.
