Removing sealing ring for front output shaft

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

Information

When the transmission is disassembled, the sealing ring on the transmission side can be removed using a screwdriver.

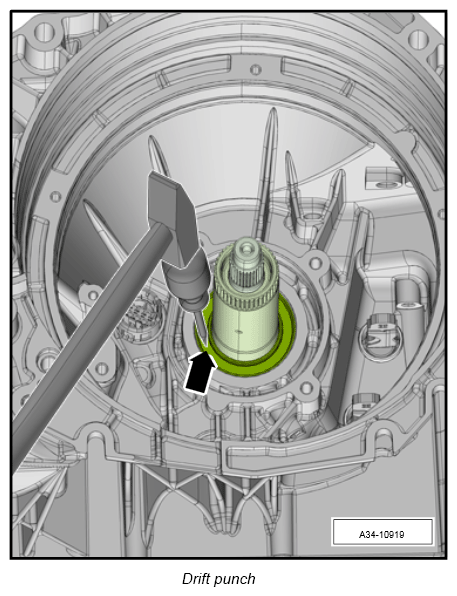

Make a small hole at a non-rubberised area of the outer sealing ring using a drift punch.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information
- Risk of damage to the bearing cage of the ball bearing behind the sealing ring. Do not press drift punch and tapping screw in too far.

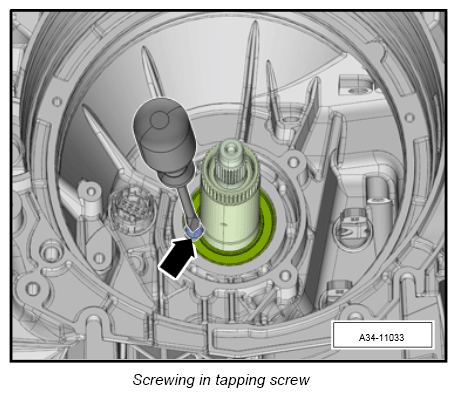

Screw a tapping screw with a large head into the hole.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Remove sealing ring.

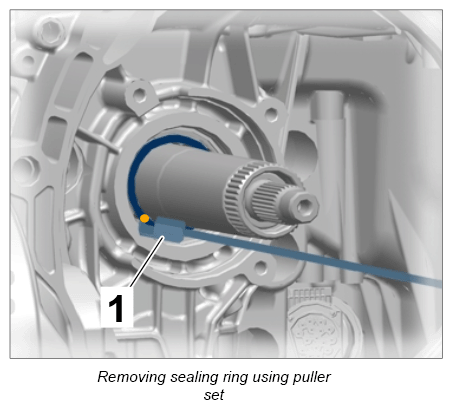

3.1. Screw in tapping screw using puller set WE 1689 -1- and remove outer sealing ring.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Make a small hole at a non-rubberised area of the inner sealing ring using a drift punch.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information
- Risk of damage to the bearing cage of the ball bearing behind the sealing ring. Do not press drift punch and tapping screw in too far.
Screw a tapping screw with a large head into the hole.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Remove sealing ring.

6.1. Screw in tapping screw using puller set WE 1689 -1- and remove inner sealing ring.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
