Installing sealing ring for front output shaft
WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

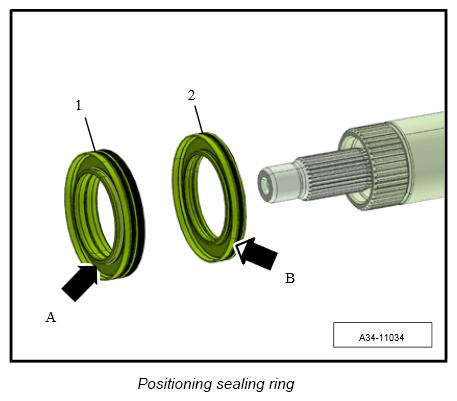

- Position new sealing ring and clip together.
- 1.1. Spiral spring -A-
of the outer sealing ring -1-
must be pointing towards the PDK transmission.
- 1.2. Spiral spring -B-
of the inner sealing ring -2-
must be pointing towards the transmission.
- 1.3. Clip outer and inner sealing ring together.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

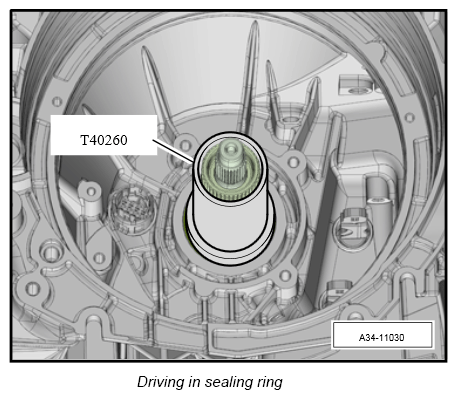

- Install new sealing ring.
Information
CAUTION:
- Press-in tool T40260 can be extended using tube VW 415 A
.
- 2.1. Tap in sealing ring using press-in tool T40260
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
