Installing sealing ring for Porsche Doppelkupplung (PDK)

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

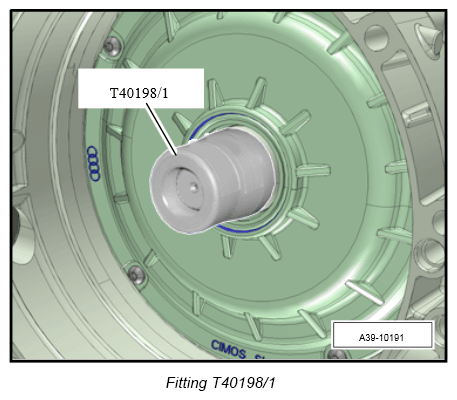

Fit guide sleeve from the tool set assembly fixture T40198 .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information
- Oil the external circumference of the new radial shaft seal
- Half-fill the space between the sealing and dust lips on the new radial shaft seal with grease.
- Open side of the radial shaft seal is facing the transmission.
Fit new radial shaft seal on guide sleeve.
Information
- Do not tilt pressure piece when tapping in the radial shaft seal.

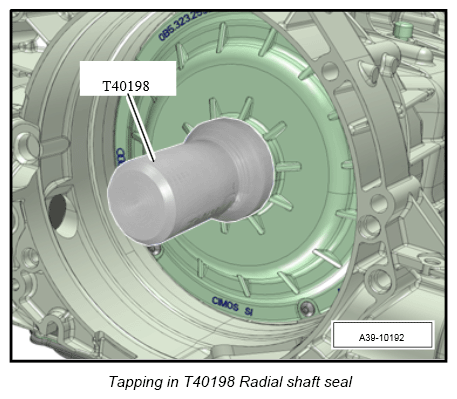

Tap in radial shaft seal using pressure piece from the tool set assembly fixture T40198 .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
