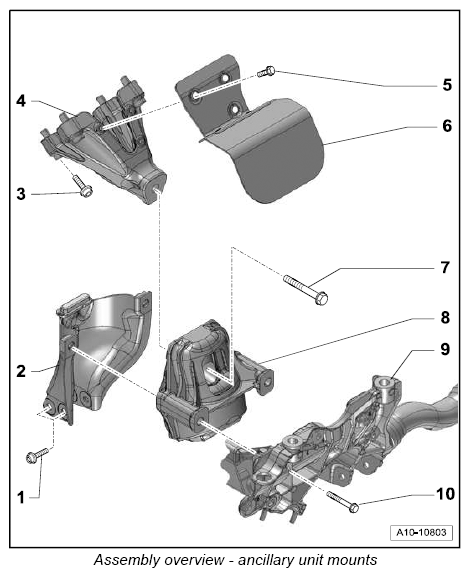

Assembly overview - ancillary unit mounts
WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
| 1 | Fastening screw → Tightening torque: 30 Nm (22 ft. lb.) |
| 2 | Retaining bracket for engine mount |
| Replace retaining bracket if engine mount is defective | |
| 3 | Fastening screw → Tightening torque: 40 Nm (30 ft. lb.) |
| 4 | Engine support |
| 5 | Fastening screw → Tightening torque: 10 Nm (7.5 ft. lb.) |
| 6 | Heat shield |
| 7 | Fastening screws/replace → Tightening torque: 90 Nm (67 ft. lb.) → Torque angle: +90° |
| 8 | Engine mount |
| With solenoid valve for electrohydraulic engine mounting | |
| 9 | Front-axle carrier |
| 10 | Fastening screw → Tightening torque: 55 Nm (41 ft. lb.) |
