Connection piece for ATF supply and return lines to transmission → Tightening torque: 20 Nm (15 ft. lb.)

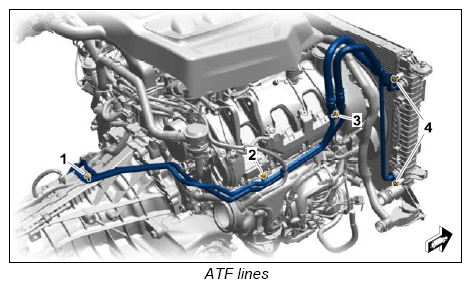

ATF lines
| 1 | Fastening screw → Tightening torque: 8 Nm (6 ft. lb.) |
| 2 | Fastening screw → Tightening torque: 8 Nm (6 ft. lb.) |
| 3 | Fastening screw for holder → Tightening torque: 8 Nm (6 ft. lb.) |
| 4 | Fastening screws securing ATF lines to radiator → Tightening torque: 5 Nm (3.5 ft. lb.) |

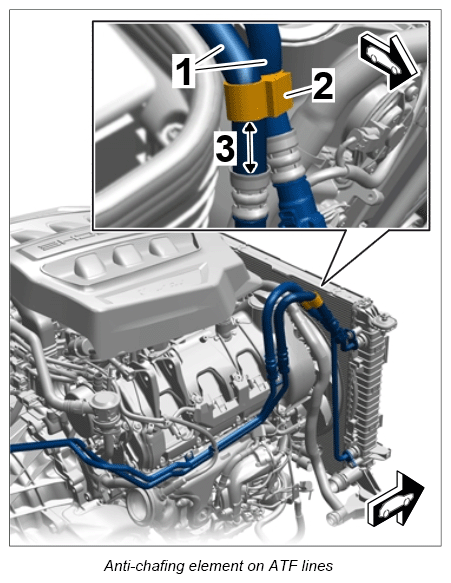

If there is no anti-chafing element fitted on the ATF lines in the radiator connection area, this must be retrofitted.
| 1 | ATF lines |
| 2 | Anti-chafing element |
| 3 | Installation dimension of anti-chafing element: → Adjustment value: 35 mm |
