Removing sensor module

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

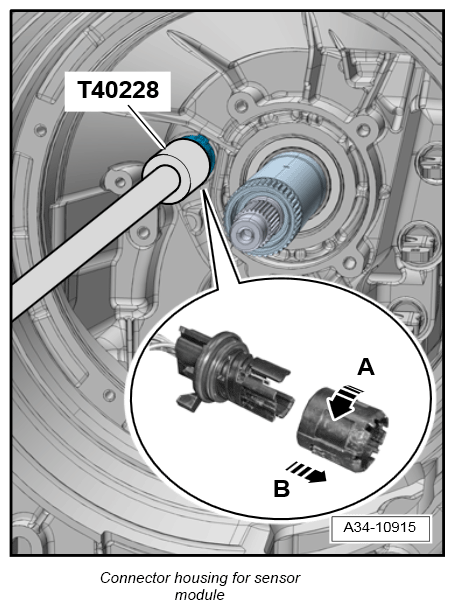

  1. Remove connector housing for sensor module.
    1. 1.1. Use bit T40228  to turn the connector housing as far as it will go to the left -A-  .
    2. 1.2. Pull off connector housing -B-  .
      G12834226Courtesy of PORSCHE CARS NORTH AMERICA, INC.

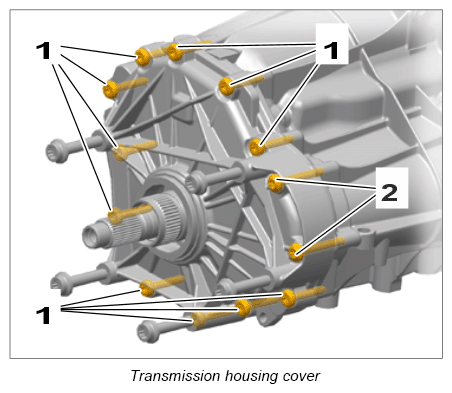

  2. Remove transmission housing cover.
    1. 2.1. Unscrew fastening screws -1, 2-  .
    2. 2.2. Pull off transmission housing cover.
      G12834227Courtesy of PORSCHE CARS NORTH AMERICA, INC.

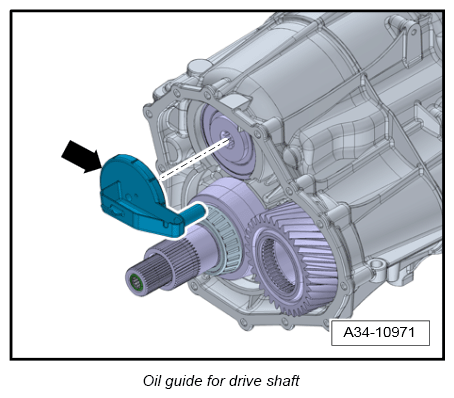

  3. Remove oil guide for drive shaft.
    G12834228Courtesy of PORSCHE CARS NORTH AMERICA, INC.

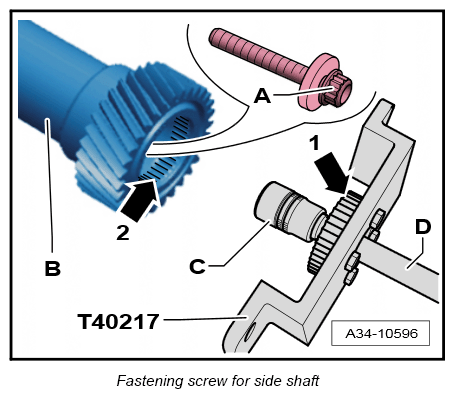

  4. Unscrew fastening screw -A-  for side shaft -B-  .
    1. 4.1. Fit bi-hexagonal socket insert (a/f 21) -C-  with extension -D-  .
    2. 4.2. Counter-hold tool T40217  must be inserted into the side shaft -arrows 1, 2-  and screwed to the center transmission housing.
      G12834229Courtesy of PORSCHE CARS NORTH AMERICA, INC.

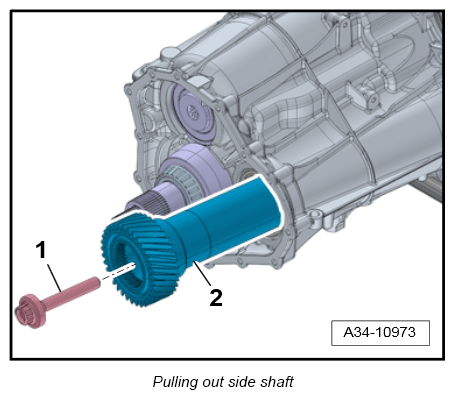

  5. Pull out the side shaft -2-  .
    G12834230Courtesy of PORSCHE CARS NORTH AMERICA, INC.

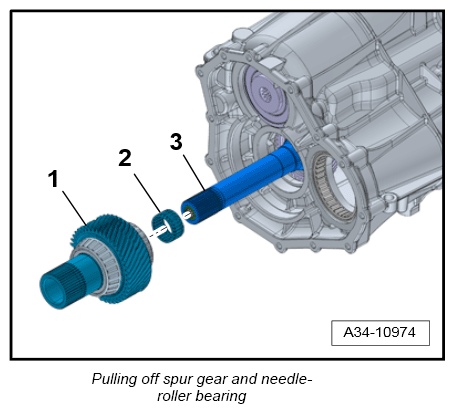

  6. Pull spur gear -1-  and needle-roller bearing -2-  off the output shaft -3-  .
    G12834231Courtesy of PORSCHE CARS NORTH AMERICA, INC.

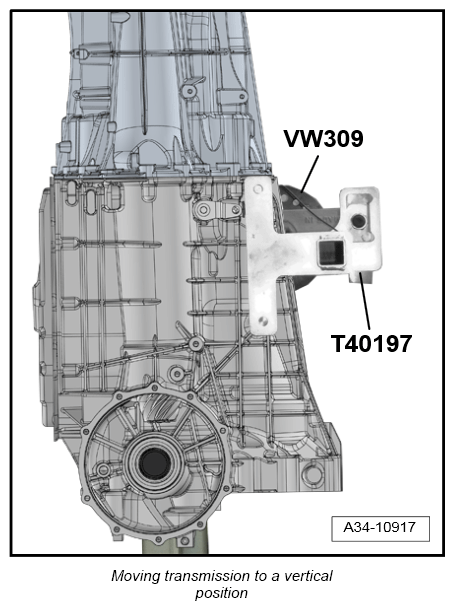

  7. Position transmission so that it is vertical on the mounting bracket. → Moving transmission to a vertical position
    1. 7.1. The clutch side is pointing downwards.
      G12834232Courtesy of PORSCHE CARS NORTH AMERICA, INC.

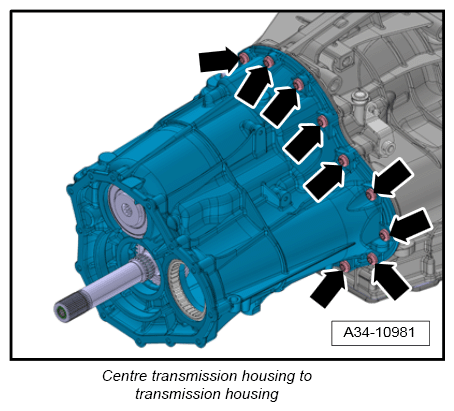

  8. Unscrew fastening screws for center transmission housing.
    G12834054Courtesy of PORSCHE CARS NORTH AMERICA, INC.

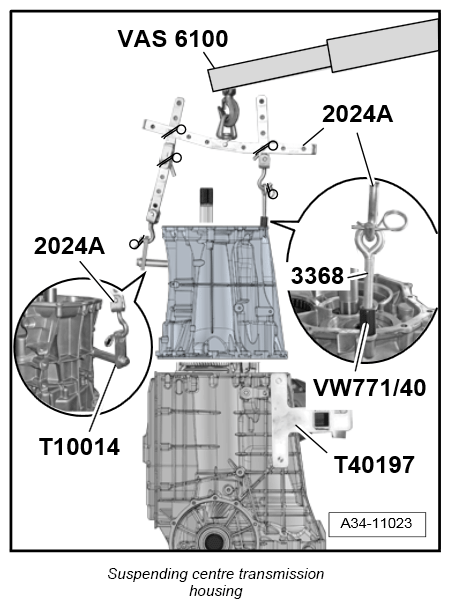

  9. Suspend center transmission housing on the workshop crane WE 1188  and remove it.
    1. 9.1. Retainer T10014  must be secured to the center transmission housing.
    2. 9.2. Secure VW771/40 from tool set Multi-purpose tool VW 771  to the center transmission housing.
    3. 9.3. Eye-head bolt 3368  must be secured to VW771/40.
    4. 9.4. Retainer T10014  and eye-head bolt 3368  must now be connected to the lifting tackle 2024A  .
    5. 9.5. Lifting tackle 2024A  must be connected to the workshop crane WE 1188  .
    6. 9.6. Lift off center transmission housing and set it down on a workbench.
      G12834234Courtesy of PORSCHE CARS NORTH AMERICA, INC.

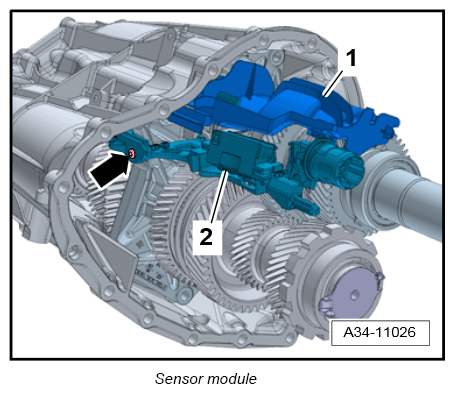

  10. Remove sensor module.
    1. 10.1. Unscrew fastening screw.
    2. 10.2. Remove sensor module -2-  and oil collection pan -1-  .
      G12834235Courtesy of PORSCHE CARS NORTH AMERICA, INC.
