Removing wire harness
WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
- Loosen fastening screws.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
- Remove wire harness.

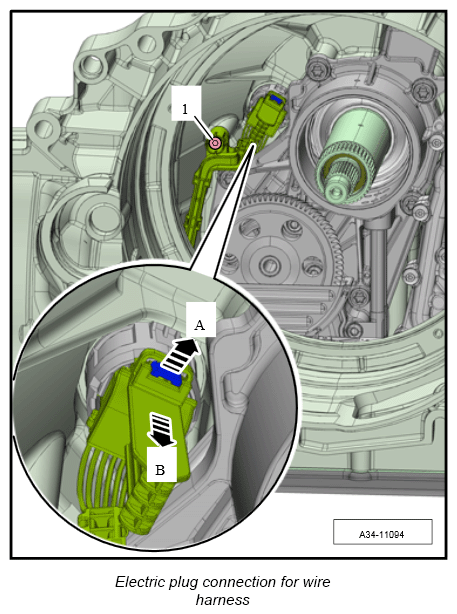

- 2.1. Loosen fastening screw -1-
.
- 2.2. Release electric plug connection -A-
.
- 2.3. Disconnect wire harness -B-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
