Removing drive shaft bearing
WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
- Remove circlip.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
WARNING:
Mechanical, hydraulic or pneumatic press
→ Read specific safety information for the press.
→ Check that the press is working perfectly before use, particularly the safety components.

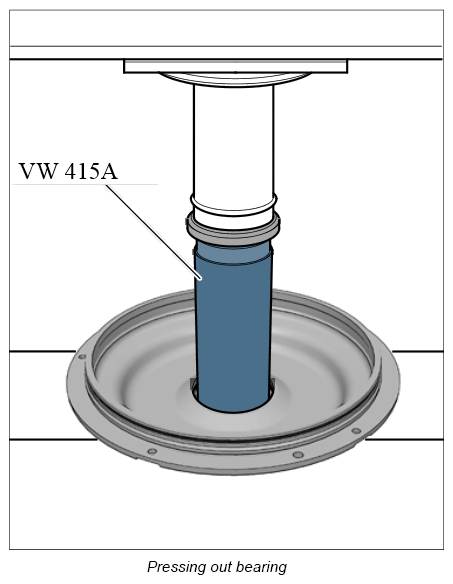

- Press out bearing using tube VW 415 A
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
- Remove thrust washer -2-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
