Installing drive shaft bearing

Information

• Use new thrust washer and circlip.

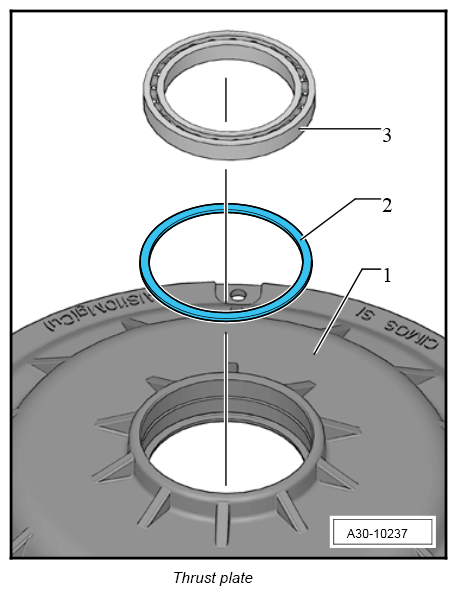

1. Fit new thrust washer -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   WARNING: Mechanical, hydraulic or pneumatic press

   • Risk of squashing

   → Read specific safety information for the press.

   → Check that the press is working perfectly before use, particularly the safety components.

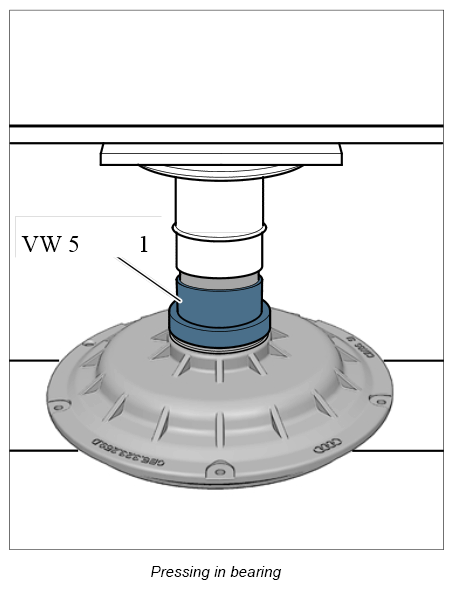

2. Press in new bearing using Pressure plate VW 511  .
   1. 2.1. Press in bearing as far as it will go.

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Information

   • Use new thrust washer and circlip.

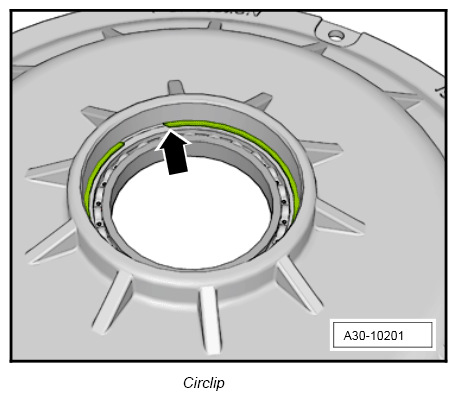

3. Fit new circlip.
   1. 3.1. Clean sealing surfaces.

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
