Removing front strut

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

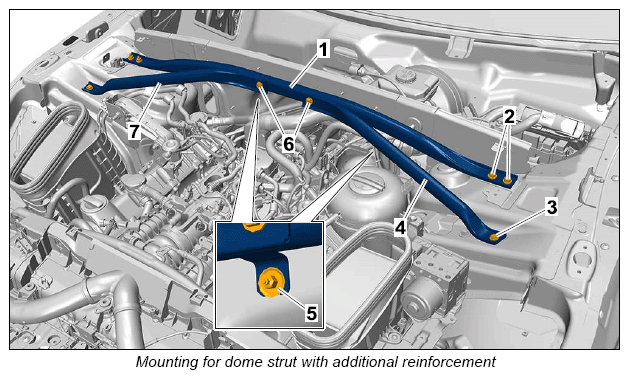

G12834589Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Remove dome strut -1-  with additional reinforcements -4 and 7-  .
    1. 1.1. Unscrew nuts -2 and 5-  and fastening screw -3-  at the left and right.
    2. 1.2. Remove dome strut -1-  .
  2. Remove additional reinforcements at the right -7-  and left -4-  .
    1. 2.1. Unscrew fastening screws -3 and 6-  on the relevant additional reinforcement.
    2. 2.2. Remove additional reinforcement -4 or 7-  .
