Removing front connecting link (suspension/stabilizer)
WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
Information
- The illustrations for removing and installing are shown only on one equipment variant and may differ from the actual equipment variant
.
- Some of the repair illustrations show only one side of the vehicle
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

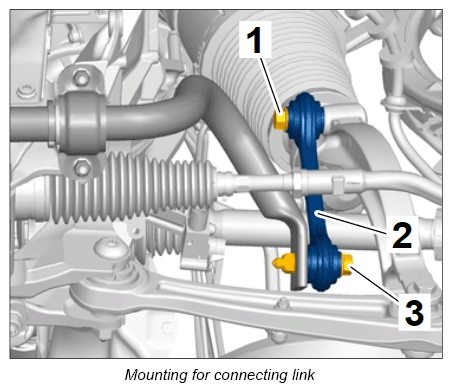

- Unscrew fastening screw -3-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
- Unscrew fastening screw -1-
.
- Remove connecting link -2-
.
