Removing front anti-roll bar

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Danger of objects or loads falling down

Risk of squashing or crushing

→ Secure components to prevent them from falling down.

Information

The illustrations for removing and installing are shown only on one equipment variant and may differ from the actual equipment variant .
Some of the repair illustrations show only one side of the vehicle .

G12834558

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

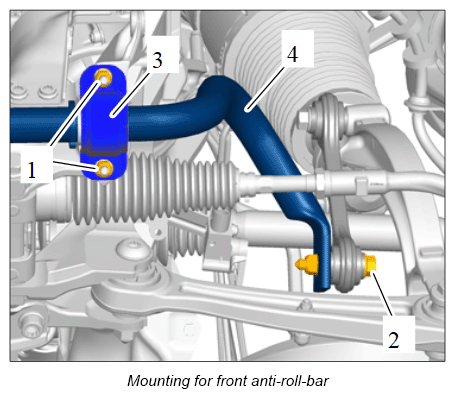

Unscrew fastening screw -2- at the left and right.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Unscrew fastening nuts -1- and remove anti-roll bar clamp -3- at the left and right.
Remove anti-roll bar -4- .
