Installing front anti-roll bar

→ Wear personal protective gear.

→ Do not raise the wheel suspension higher than the normal vehicle position (vehicle resting on wheels).

Information

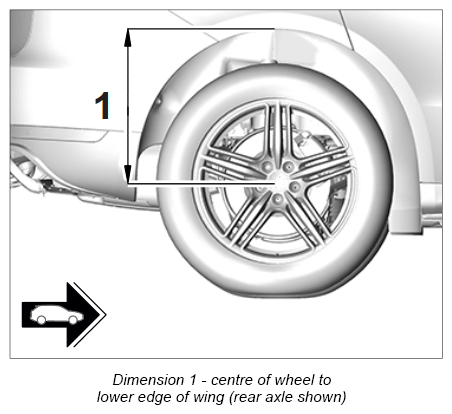

• All screws and threaded joints on the axle must be tightened in vehicle position. Vehicle position means: vehicle standing on its wheels or the wheel suspension is raised with a universal vehicle lift. Dimension -1-  , from lower edge of wing to center of axle corresponds to vehicle position. The current height values can be found in

→ 4495TW ADJUSTMENT VALUES FOR SUSPENSION ALIGNMENT .

Pay particular attention to the following points!

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

• Screws and nuts are Geomet-coated and must not be greased  .

Installation is performed in reverse order to removal. Pay particular attention to the following:

1. Position anti-roll bar in installation position.

   For Macan Basis and Macan Diesel:  Make sure that the gap in the rubber mounting in the right bracket is touching the contact surface of the clip.

   For Macan S and Macan Turbo:  The rubber mounting is in two parts with a special precisely fitted clip. The gap in the rubber mounting must be parallel to the contact surface of the clip.

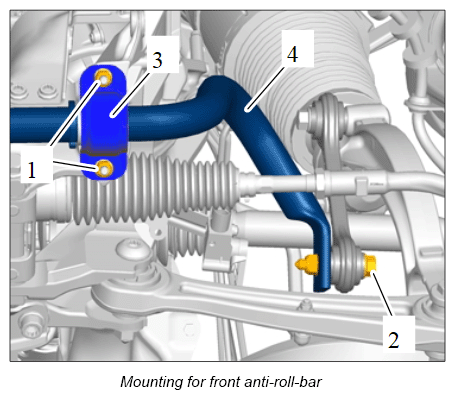

2. Tighten fastening nuts -1-  on the anti-roll bar clamps -3-  on both sides of the vehicle. Tightening torque 30 Nm (22 ft. lb.)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

3. Tighten fastening screw -2-  on both sides of the vehicle. Initial tightening 40 Nm (30 ft. lb.) Final tightening +90°
