Subsequent work

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

Install brake disc → 465019 REMOVING AND INSTALLING FRONT BRAKE DISC .
Install brake calliper → 473919 REMOVING AND INSTALLING FRONT BRAKE CALLIPER .
WARNING:
Improper handling of fluid-carrying lines
- Escaping fluid
- System malfunction
- Risk of escaping fluid catching fire
→ Do not kink, crush or twist the line

→ Avoid torsion and shearing

→ Fit the line carefully

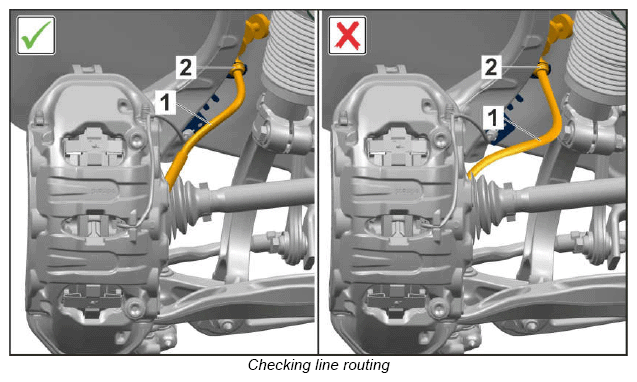

Check line routing of brake hose -1- .
When doing this, check that the brake hose -1- (as shown) is at its original position in the grommet -2- and is not touching the spring strut.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Install front speed sensor → 451155 REPLACING FRONT SPEED SENSOR .

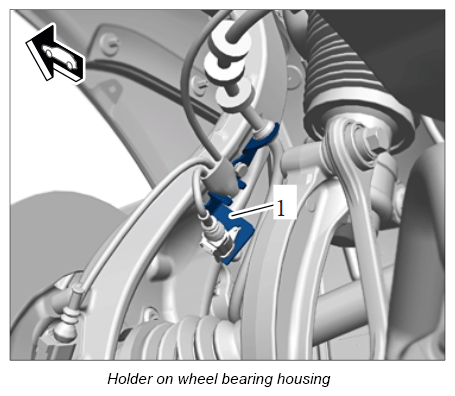

Secure holder -1- for brake line, wear indicator and speed sensor on the wheel bearing housing. Tightening torque 10 Nm (7.5 ft. lb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Install lower trailing arm → 401719 REMOVING AND INSTALLING LOWER TRAILING ARM .
Fit wheel → 440519 REMOVING AND INSTALLING WHEEL .
Perform suspension alignment → 449503 SUSPENSION ALIGNMENT, COMPLETE .
