Disassembling front drive shaft

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Danger of objects or loads falling down

Risk of squashing or crushing

→ Secure components to prevent them from falling down.

The joint on the transmission side and the joint pin on the wheel side of the front axle can be replaced. The entire drive shaft must be replaced if the profile shaft of the joint pin is defective.

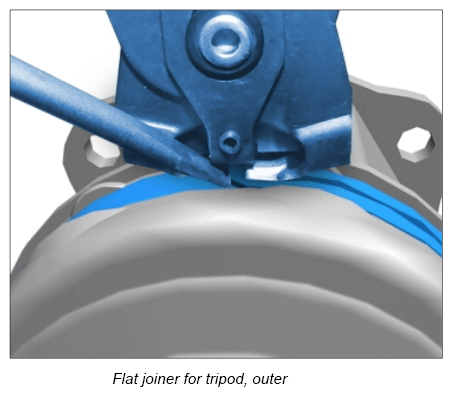

Remove the outer flat joiner on the inner drive shaft boot using Hose Clip Pliers WE 1627 and use a slotted screwdriver for support if necessary.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

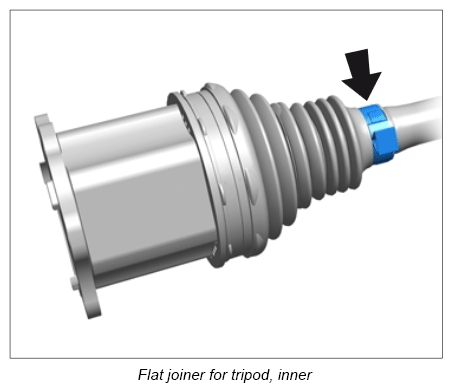

Remove inner flat joiner on the inner drive shaft boot.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

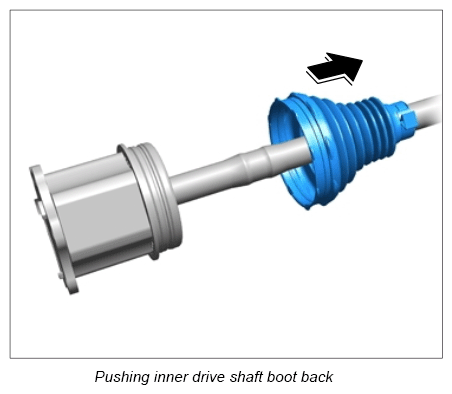

Push the inner drive shaft boot back.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

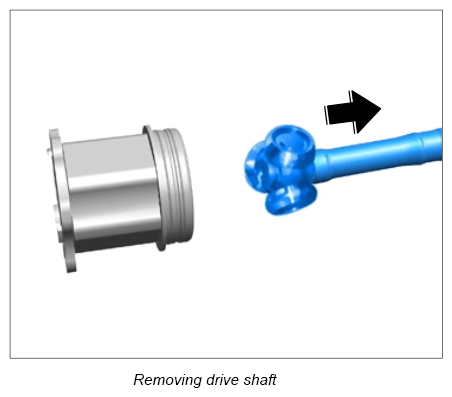

Remove drive shaft from the tripod bell.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove the outer/inner flat joiners from the outer drive shaft boot.

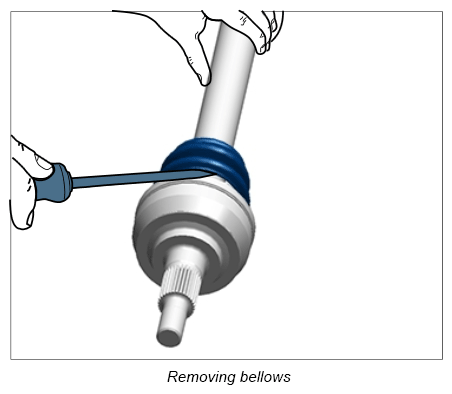

1. 5.1. Pull outer drive shaft boot off the joint pin.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

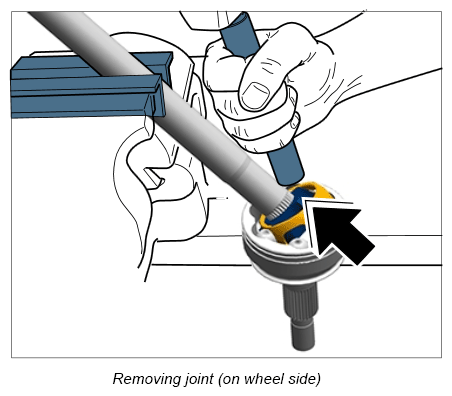

Clamp the drive shaft (use aluminum protective jaws). Position an aluminum mandrel on the ball hub of the joint pin (star-shaped inner ring) and remove the joint pin (outer joint) by hitting it several times with a hammer.
