Removing front drive shaft

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

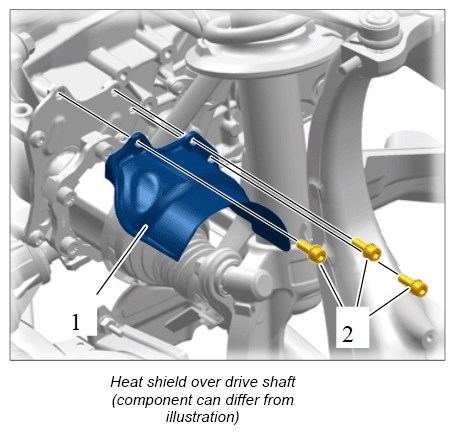

  1. If used: Remove heat shield -1-  over the drive shaft.
    G12834500Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    1. 1.1. Unscrew fastening screws -2-  .

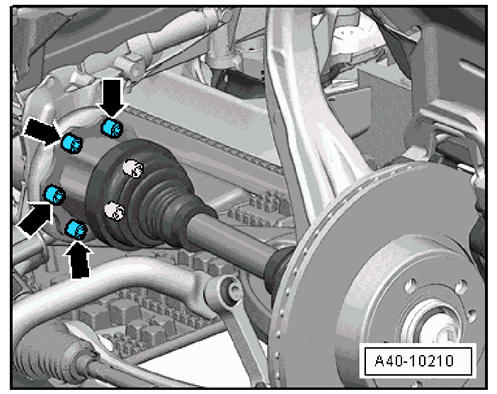

  2. Unscrew fastening screws for the drive shaft on the transmission.
    G10032912Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Turn wheel bearing housing in until the drive shaft can be pulled out of the wheel bearing housing.
  4. Remove drive shaft.
