Removing lower axle joint
WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

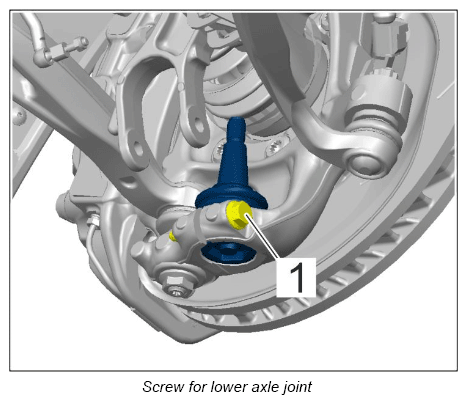

- Unscrew screw -1-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

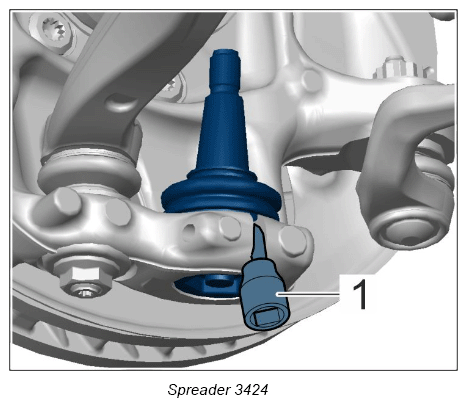

- Spreader 3424 -1-
must be inserted into the slot on the wheel bearing housing. Then, turn it 90 degrees.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
- Remove lower axle joint from wheel bearing housing.
