Installing lower axle joint
WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
- Installation is performed in reverse order. Pay particular attention to the following:
- 1.1. Insert axle joint as far as it will go into the wheel bearing housing.

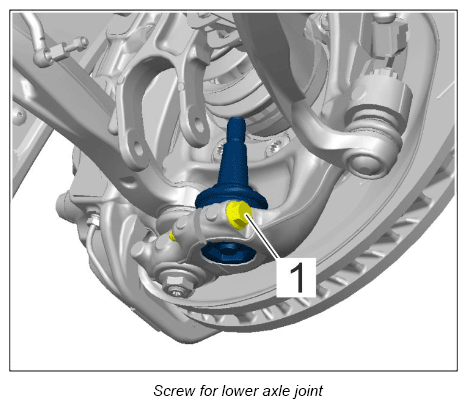

- 1.2. Tighten screw -1-
. Tightening torque 40 Nm (30 ft. lb.)
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
