Replacing upper trailing-arm bearings

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

Information

The following tools are required for replacing the bearing:

Assembly fixture 3301
Assembly fixture T10230

Clamp the trailing arm in a vice with aluminum protective jaws.

Press out the trailing-arm bearing.

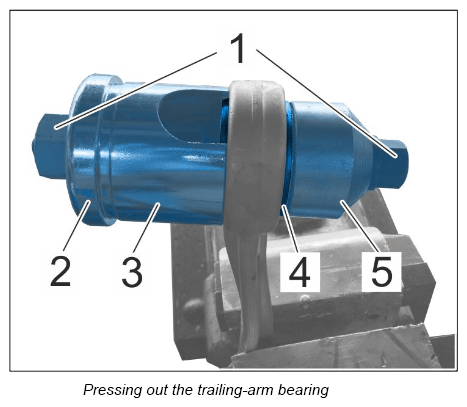

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1	Spindle with nuts 3301/1
2	Pressure piece 3301
3	Pressure piece 3301/3
4	Bearing
5	Pressure piece T10230/13

2.1. Position special tools as shown in -illustration- .
2.2. Press out bearing -4- by turning the nut.

Information

Do not use lubricant!

Press in trailing-arm bearing.

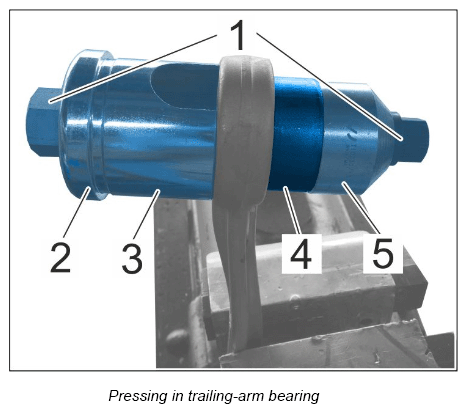

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1	Spindle with nuts 3301/1
2	Pressure piece 3301
3	Pressure piece 3301/3
4	Bearing
5	Pressure piece T10230/13

3.1. Position special tools as shown in -illustration- .
3.2. Press out bearing -4- by turning the nut.

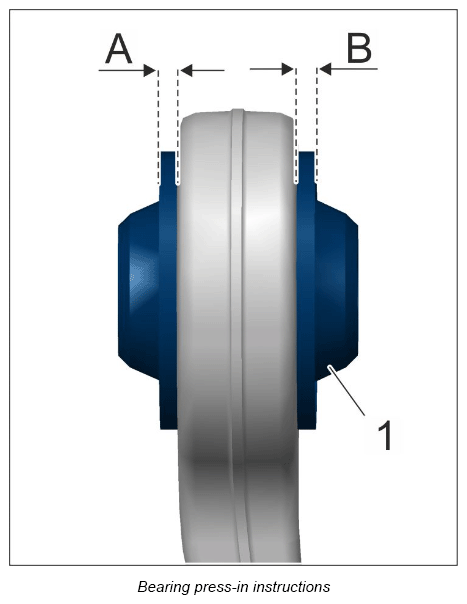

3.3. Press in bearing -1- so that -dimension A- = -dimension B- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
