Removing control arms

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

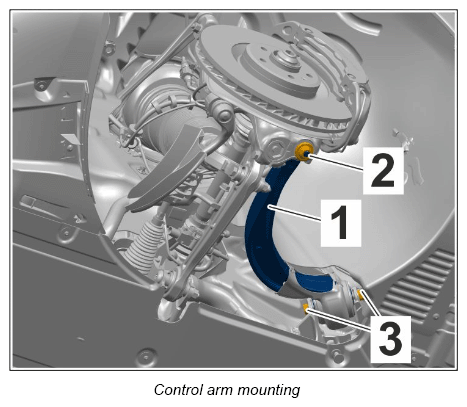

  1. Remove control arm -1-  from the wheel bearing housing.
    1. 1.1. Screw off nut -2-  .
    2. 1.2. Press off control arm using ball-joint extractor T40010A  .
  2. Remove control arm -1-  from the front-axle carrier.
    G12834477Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    1. 2.1. Loosen threaded joint -3-  .
