Removing upper trailing arm

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
  1. Lift the wheel bearing housing.

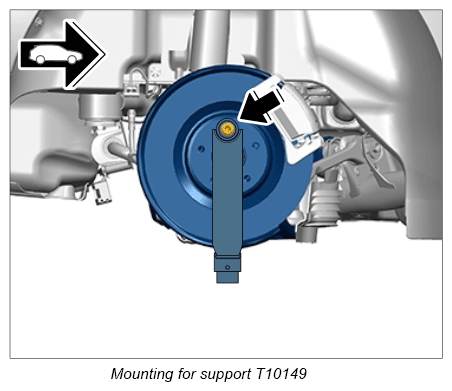

    G12834473Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    1. 1.1. Turn the wheel hub in such a way that a bore for a wheel bolt is at the top.
    2. 1.2. Support T10149  must be secured to the wheel hub with a wheel bolt
    3. 1.3. Support T10149  must now be fitted into the Transmission and Engine Jack WE 1599  .
    4. 1.4. Lift the wheel bearing housing.
  2. Separate threaded joint -1-  .

    Information

    The slots in the wheel bearing housing must not be widened using a chisel or similar tool!

  3. Pull the two pins for the upper trailing arm -2-  out of the wheel bearing housing.

    Information

    Do not lower the wheel bearing housing any lower than required.

  4. Unscrew nuts -3 and 6-  .
  5. Pull out screws -4 and 5-  .
  6. Remove upper trailing arm.
G10032902Courtesy of PORSCHE CARS NORTH AMERICA, INC.
