Removing front-axle support

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

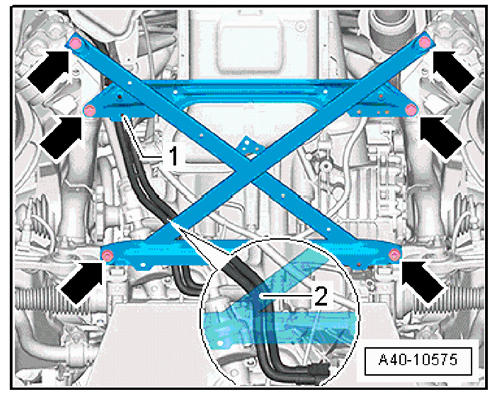

  1. Unclip electric line at the marked positions -1 and 2-  .
  2. Unscrew fastening screws.
  3. Remove front-axle support.
G10032898Courtesy of PORSCHE CARS NORTH AMERICA, INC.
