Subsequent work

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove support bracket → 1001IN SUPPORTING ENGINE ON THE BODY (ENGINE SAFETY DEVICE) .
  2. Install lower trailing arm on both sides of the vehicle → 401719 REMOVING AND INSTALLING LOWER TRAILING ARM .
  3. Remove tension straps → Tying up wheel bearing housing  .
    G10032878Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  4. Install front level sensors → 431855 REPLACING FRONT LEVEL SENSOR .
  5. Install power-steering gear → 489055 REPLACING POWER-STEERING GEAR .
  6. Install anti-roll bar → 407719 REMOVING AND INSTALLING FRONT ANTI-ROLL BAR .

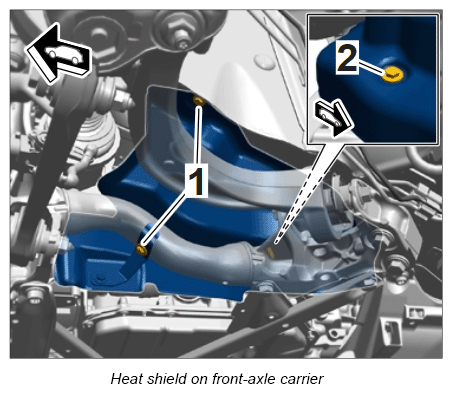

  7. Install heat shields at the left and right and tighten fastening screws -1 and 2-  .

    Fastening screws -1-  : Tightening torque 9 Nm (6.5 ft. lb.)

    Fastening screw -2-  : Tightening torque 20 Nm (15 ft. lb.)

    G12834467Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  8. Install front-axle support → 400819 REMOVING AND INSTALLING FRONT-AXLE SUPPORT .
  9. Install front underbody panelling → 519219 REMOVING AND INSTALLING COVER FOR FRONT UNDERBODY .
  10. Install wheel housing liner on both sides of the vehicle → 505619 REMOVING AND INSTALLING FRONT WHEEL HOUSING LINER .
  11. Fit front wheels → 440519 REMOVING AND INSTALLING WHEEL .
  12. Perform suspension alignment → 449503 SUSPENSION ALIGNMENT, COMPLETE .
