Installing positive crankcase ventilation valve
WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

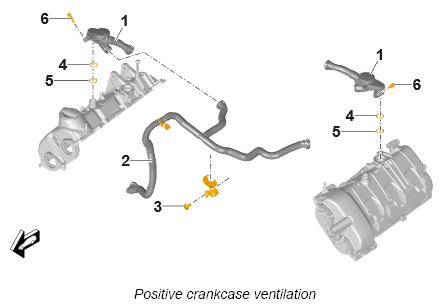

- Install positive crankcase ventilation valve -1-
.
- 1.1. Check sealing rings -4-
and -5-
replace them if necessary.
- 1.2. Position positive crankcase ventilation valve -1-
on the cylinder head cover.
- 1.3. Screw in screw -6-
and tighten it Tightening torque 10 Nm (7.5 ft lb.)
- 1.4. Secure line -2-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
