Removing torque support

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove torque support.
    1. 1.1. Loosen nuts -3-  .
    2. 1.2. Pull out screws -1 and 2-  .
    3. 1.3. Remove torque support -4-  .

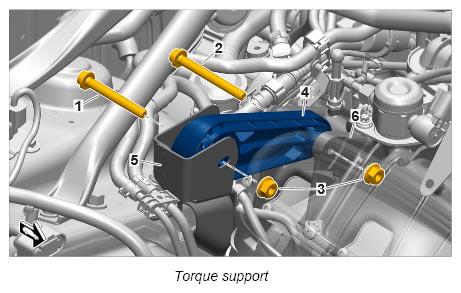

      G12833299Courtesy of PORSCHE CARS NORTH AMERICA, INC.
