Subsequent work

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

Tighten fastening screws -1, 2 and 3- on both sides.

Fig 1: Front Axle Carrier Screws Tightening Sequence
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

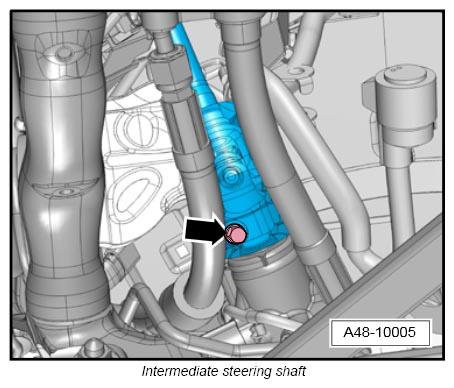

Push universal joint onto the steering gear and tighten screw.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

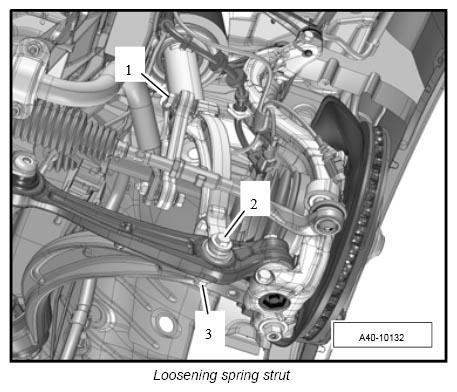

Secure spring strut to the wishbone and anti-roll bar to the spring strut on both sides.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Connect electric plug connection -1- and clip in line.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

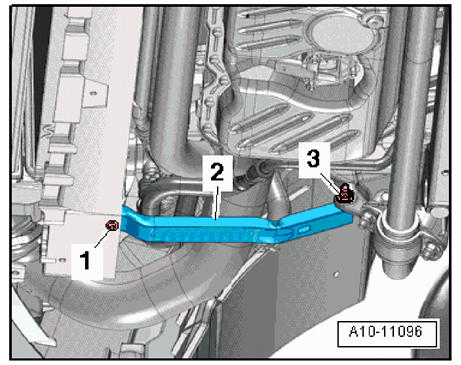

Install strut -2- at the lower lock carrier on both sides.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Secure intake manifold.
Install front wheel housing liner. → 505619 REMOVING AND INSTALLING FRONT WHEEL HOUSING LINER
Remove engine support from the body.
Perform suspension alignment at the front axle. → 449503 SUSPENSION ALIGNMENT, COMPLETE

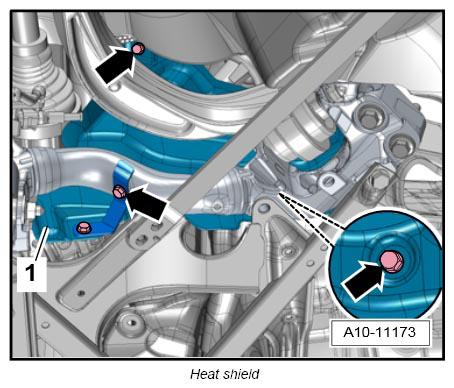

Install heat shield.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
