Removing engine mount

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

Unscrew screws -1, 2, 3 - .

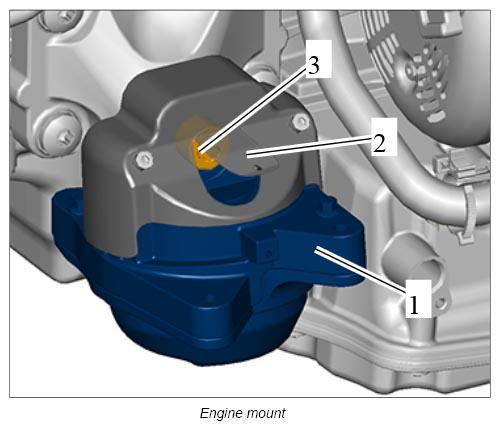

Fig 1: Engine Mount Fastening Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

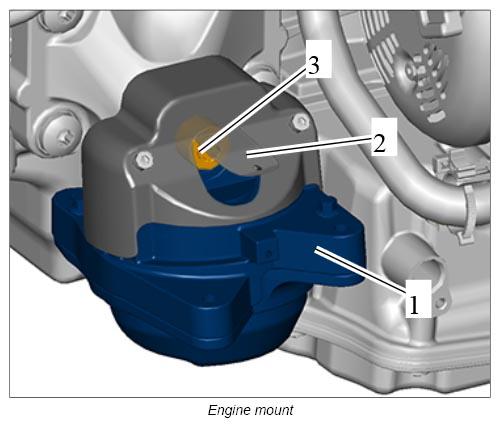

Remove engine mount -1 - at the left .

2.1. Lift and secure the cover -2- .
2.2. Loosen screw -3- using 3/8" flexible-head socket and unscrew by a few turns.
2.3. Remove flexible-head socket.
2.4. Unscrew screw -3- by hand.

2.5. Remove engine mount -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Remove engine mount -1 - at the right .

3.1. Lift and secure the cover -2- .

3.2. Unscrew screw -3- and remove engine mount -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
