Preliminary work

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
  1. Support the engine on the body. → 1001IN SUPPORTING ENGINE ON THE BODY (ENGINE SAFETY DEVICE)
  2. Remove front wheel housing liner. → 505619 REMOVING AND INSTALLING FRONT WHEEL HOUSING LINER
  3. Loosen intake manifold.
  4. Remove strut -2-  at the lower lock carrier on both sides.
    1. 4.1. Unscrew fastening nut -3-  .
    2. 4.2. Unscrew fastening screw -1-  .
    3. 4.3. Remove strut -2-  on both sides.
      G10032880Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  5. Disconnect electric plug connection -1-  , unclip line and move it aside.
    G12833203Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  6. Loosen spring strut at the wishbone on both sides.
    1. 6.1. Unscrew fastening screw -1-  and loosen anti-roll bar at the spring strut.
    2. 6.2. Unscrew fastening nut -3-  and remove fastening screw -2-  .
      G12833208Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  7. Unscrew fastening screws -1 and 2-  and remove heat shields at the left and right.
    G12833284Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  8. Unscrew fastening screw and pull universal joint off the steering gear.
    G12833212Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  9. Loosen fastening screws on the front-axle carrier at both sides.
    1. 9.1. Before loosening the fastening screws, mark the installation position of the front-axle carrier with a felt-tip pen.
    2. 9.2. Loosen fastening screws -1, 2 and 3-  on both sides.

      Do not unscrew fastening screws fully!

      Fig 1: Front-Axle Carrier Screws Loosening Sequence
      G12833213Courtesy of PORSCHE CARS NORTH AMERICA, INC.

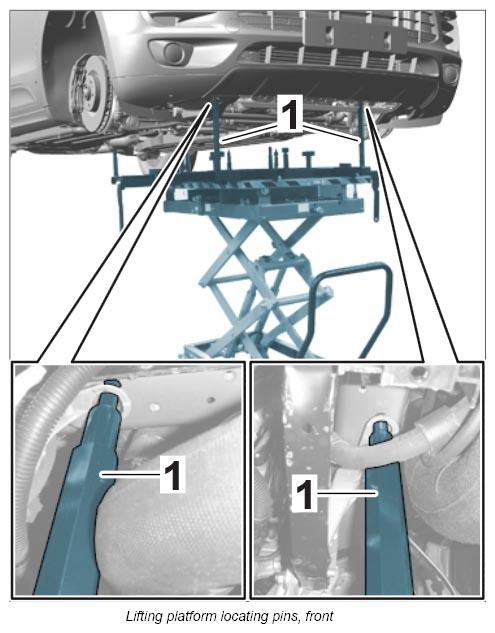

  10. Raise the elevating platform and guide front locating pins -1-  into the jacking points provided for this purpose on the body.

    Locating pins are only for guiding the assembly fixture and must not be fitted  .

    Do not use locating pin at the front left in direction of travel (due to accessibility of jacking point).

    G12833287Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  11. Unscrew fastening screws -1, 2 and 3-  on both sides.
    Fig 2: Unit Carrier Screws Loosening Sequence
    G12833213Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  12. Lower the front-axle carrier by approx. 130 mm.
