Installing engine mount

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
  1. Place engine mounting in installation position and tighten screw. Initial tightening 90 Nm (67 ft lb.) Final tightening +90°
  2. Lift front-axle carrier and place in installation position.
  3. Secure the engine mount to the front-axle carrier.
    1. 3.1. Fit and tighten screws -1, 2, 3-  uniformly by hand.
    2. 3.2. Tighten screws in the sequence -1, 2, 3-  . Tightening torque 30 Nm (22 ft lb.)

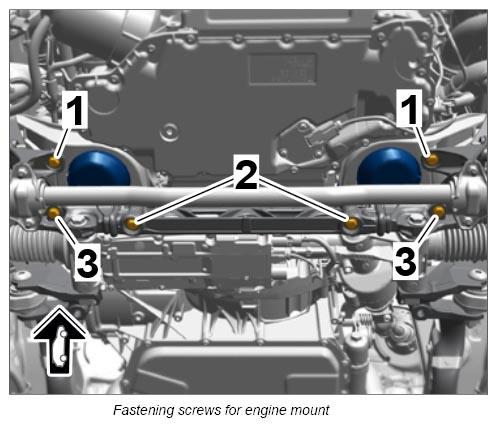

      Fig 1: Engine Mount Fastening Screws Tightening Sequence
      G12833292Courtesy of PORSCHE CARS NORTH AMERICA, INC.
      1  Screw, M8 x 75
      2  Screw, M8 x 125
      3  Screw, M8 x 95
