Installing oil spray jets

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

Information

The type of oil spray jets used depends on the engine number. Always check the engine number when ordering new oil spray jets.
Adapted software must be installed on the control unit if necessary due to modified oil pressures.

Insert oil spray jets into the upper part of the crankcase with new sealing rings and screw them on.

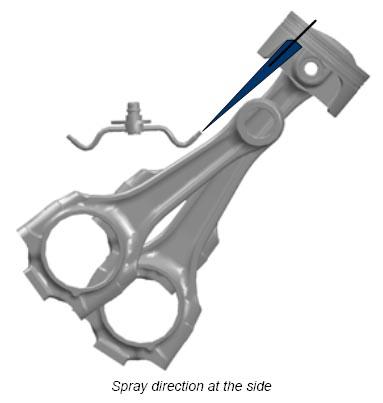

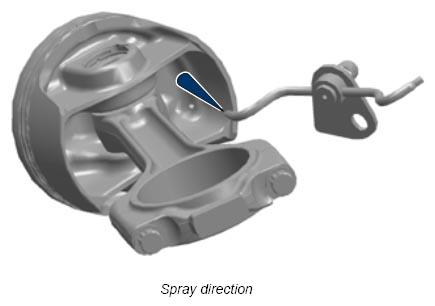

To do this, grease sealing ring with Kluber Syntheso GLEP 1 and fit it. Check that oil spray jets are pointing in the correct direction of spray toward the inside of the piston crown. The oil spray jet must be aimed at the piston crown. Tightening torque 10 Nm (7.5 ft lb.)
