WM 1001IN Supporting engine on the body (engine safety device): Tools

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

Designation	Type	Number
engine safety device	VW tool	10-222 A	Courtesy of PORSCHE CARS NORTH AMERICA, INC.

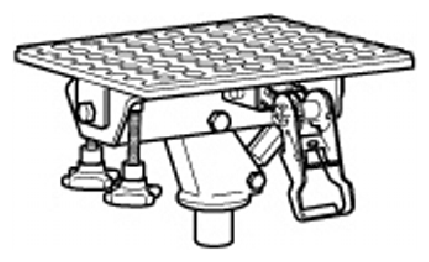

GA passenger-vehicle transmission plate	Workshop equipment	WE 1224	Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Transmission and Engine Jack	Workshop equipment	WE 1599	Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Lifting tackle	VW tool	3033	Courtesy of PORSCHE CARS NORTH AMERICA, INC.
pipes	VW tool	T40091/1	Courtesy of PORSCHE CARS NORTH AMERICA, INC.

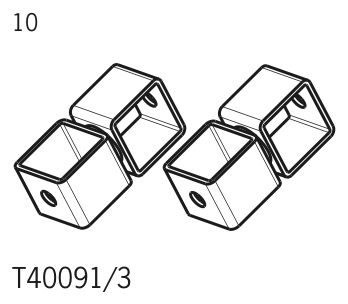

joiners	VW tool	T40091/3	Courtesy of PORSCHE CARS NORTH AMERICA, INC.

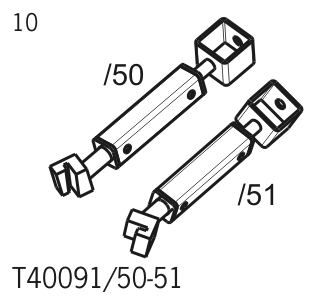

supports	VW tool	T40091/50-51	Courtesy of PORSCHE CARS NORTH AMERICA, INC.
engine safety device supplement	VW tool	T40091/54	Courtesy of PORSCHE CARS NORTH AMERICA, INC.
engine safety device supplement	VW tool	T40091/55	Courtesy of PORSCHE CARS NORTH AMERICA, INC.
supports	VW tool	T40093/3P	Courtesy of PORSCHE CARS NORTH AMERICA, INC.
base	VW tool	T40093/50	Courtesy of PORSCHE CARS NORTH AMERICA, INC.
adjustable foot	VW tool	T40093/51	Courtesy of PORSCHE CARS NORTH AMERICA, INC.
