Engine safety device
WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

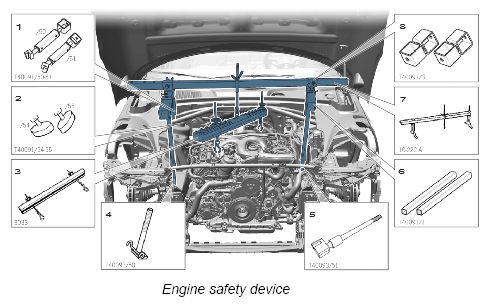

| 1 |
For left longitudinal member, one adjustable foot T40093/51 |
| 1 |
For right longitudinal member, one base T40093/50 |
| 2 |
Two supports T40093/3P |
| 3 |
Two supports T40091/50-51
, engine safety device supplement T40091/54, engine safety device supplement T40091/55 |
| 4 |
Two pipes T40091/1 |
| 5 |
Two joiners T40091/3 |
| 6 |
One engine safety device 10-222 A |
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

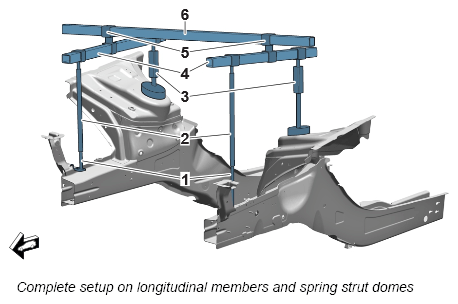

| 1 |
Support T40091/50-51 |
| 2 |
Engine safety device supplement T40091/54 Engine safety device supplement T40091/55 |
| 3 |
Lifting tackle 3033 |
| 4 |
Base T40093/50 |
| 5 |
Adjustable foot T40093/51 |
| 6 |
Pipe T40091/1 |
| 7 |
Support bracket 10-222 A |
| 8 |
Joiner T40091/3 |
